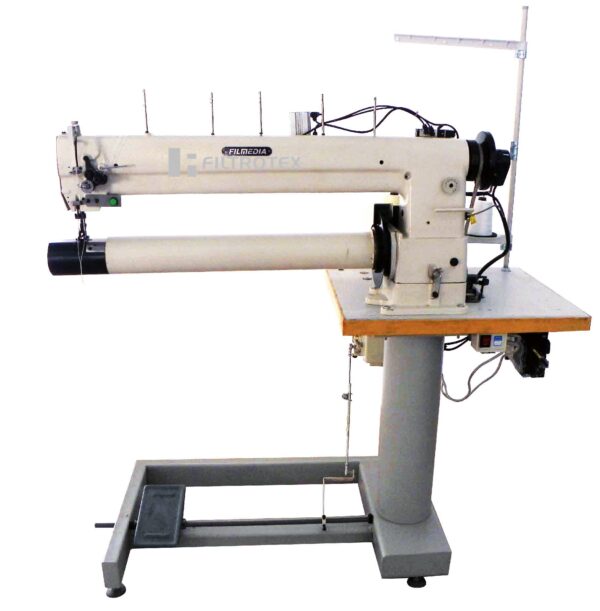

Long Arm Double Needle Sewing Machine
Long Arm Double Needle Sewing Machine used for stitching reverse filter bags.
It own the high performance below：
1. Synchronous feeding can prevent fabric slide.
2. Upper and lower shaft adopt synchronous toothed belt .
3. Knobs type disk is easy to adjust needle distance.
4. Clutch device prevent damage from overload operation.
We have the new whole machine catalogue,please click here!
We also have videos in the youtube, the link below
https://www.youtube.com/channel/UCW3ondwLbuwy7FY6C0LMw7A
- Description
Description
Optional model:
Long arm sewing machine without synchronous rotation FM-CFY-760 ,FM-CFY-960,FM-CFY-1100 long arm sewing machine with synchronous rotation FM-CFY-TB-760,FM-CFY-TB-960,FM-CFY-TB-1100
Technical parameters of Long Arm Double Needle Sewing Machine:
| Max.sewing speed | 1100 rpm |
| Max. Needle distance | 8mm |
| Working space | 100mm x 760mm |
| Working length | 760mm，960mm,1100mm |
| Needle code | DP X 17 |
| Motor power | 220V/380V – 550W |
Features of Long Arm Double Needle Sewing Machine:
- Synchronous feeding can prevent fabric slide.
2. Upper and lower shaft adopt synchronous toothed belt .
3. Knobs type disk is easy to adjust needle distance.
4. Clutch device prevent damage from overload operation.
5. Synchronous rotation and non-synchronous rotation can be optional.
Advantages:
- Suitable coupling assembly design
2.Automatic lubrication system
3.DELTA motor
4.Stainless steel ring die
5.Full stainless steel feeder
6.Full stainless steel conditioner
