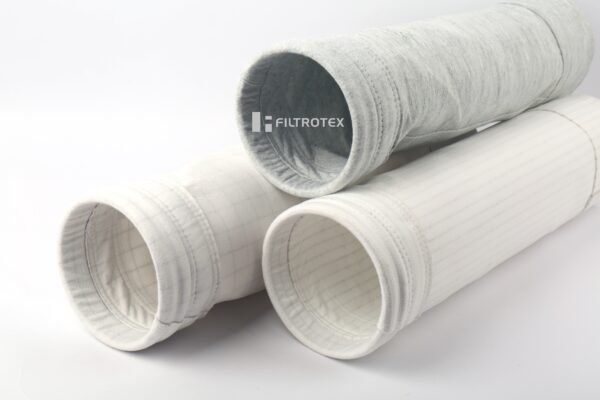

Anti-Static Filter Bag

Anti-Static Filter Bag

Surface resistance(Ω.cm): 108 -103
Good Temperature-Resistance. Max. Temp. 150℃
Material Weight: 100-600gsm
Types:blending type , square type, stripe type
High Filtration Efficiency: reach to 99.5%
Antistatic Filter bag is widely used in flour, chemical and coal industries. Filmedia® provide the filter bags with excellent performance of anti-static. We can offer blending type , square type, stripe type for your choices. The customized service can also be provided.

Optional ChoicePleated Filter Bag (Star Bag)

The main advantages and features:

  1. To increase system filtration capacity by 50-150% as needed without major changes to the dust collectors ;
  2. System cleaning efficiency markedly increased with the effective increase of bag to bag distance;
  3. Bag life extended due to significant reduction of fatigue damage to the bags due to bag to cage impact.

Ask for free sample or trial order, please click here.

  • Description


Main Types of Anti-static Filter Bag:

1.PE (polyester)
2.PP (polypropylene)
3.Special need also be acceptable

Specification of Anti-static Filter Bag:

  1. Material : 100% Anti-static polyester staple fiber
    2. Surface resistance(Ω.cm):  103-108
    3. Scrim: with Anti-static polyester filament yarn
    4. Diameter:>100 mm
    5. Weight:300 -600 g/m² ±10%
    6. Temperature (°C/°F): Continue: 130/266, Instant: 150/302

Features of Anti-Static Filter Bag:

  1. High Filtration Efficiency: reach to 99.5%
    2. Excellent Anti-Abrasion
    3. Stable working time: up to more than 4000 hours. Could be used cyclically
    4. High quality and economical
    5. Can be customized

Physical Properties and Chemical Properties:


Weight(gsm) 300 -600 g/m² ±10%
Diameter(mm) >100mm
Finish treatment Singeing, Calendering, Heat setting
Air permeability(L/m².s) 200-300
Tensile strength(N/5cm) warp ≥1100
weft ≥1500
Tensile  elongation(%) warp ≤35
weft ≤60
Heat shrinkage(%) warp ≤1.5
weft ≤1.0
Temperature(°C/°F) Continue 130
Instant 150
Anti-acid Middle
Anti-alkali Middle
Anti-abrasion Excellent
hydrolysis stability Middle
