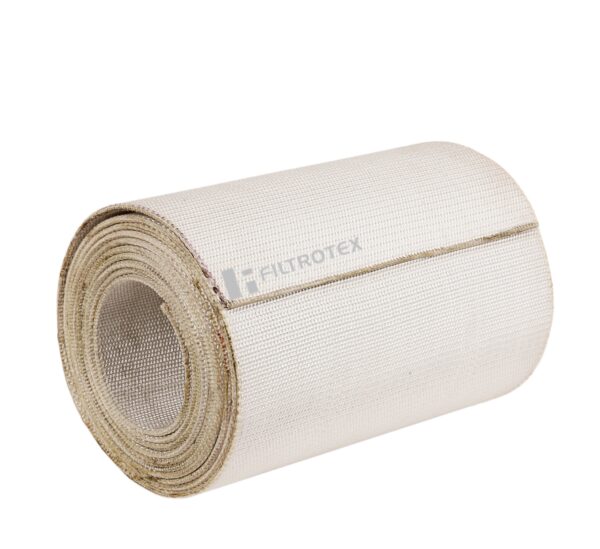

Air Permeable Fabric

Air Permeable Fabric

The main use of Air Permeable Fabric is discharging, declining transportation or homogenizing the powder or small granular material in quiescent condition. We adopt 100% polyester yarns for Air Permeable Fabric material.
Our capacity: 2000 m2 per Day.
The max. length per roll: 50 M.
Width: 0.10 M ~ 2.6 M.
Thickness: 4~10 MM.
Max. Operating Temp.: 160 ℃.
Ultimate Temp.( Instant ): 200 ℃.
Can be customized by specific demands.

  • Description

Description

There are two kinds of Air Permeable Fabric

Filament Polyester Air Permeable Fabric Spun Polyester Air Permeable Fabric

Our company’s spun polyester Air Permeable Fabric has advantages on the performances of tensile strength, air permeability, and high temperature resistance. But filament polyester Air Permeable Fabric is superior to spun polyester Air Permeable Fabric on the above performances. Air Permeable Fabric is also named as Air slide fabric, Air slide cloth, Air Slide Membrane, Air Slide Canvas, Canvas Cloth, and Fluidization cloth, fluidizing fabric, etc. We are also, however, able to weave fabrics to our customers’ specific demands for air permeability and mechanical strength.

Technical parameter of Air Permeable Fabric:

Product Name Air Permeable Fabric
Thickness( mm ) 4 ~ 10
Gram Weight( gsm ) 3200 ;5600
Air permeability( L/m2.s ) 65 ~ 100
Elongation (Strength: 2000 N / 2 cm ) Warp 1.4 ~ 2.5 %
Weft 0.65 ~ 1.2 %
Max. Operating Temp. 160 ℃ ( 320 ℉)
Ultimate Temp.( Instant ) 200 ℃ ( 392 ℉)
Number of plies 5

Ps: Average errors of thickness is +/- 0.3mm , gram weight is +/- 5%, air permeability is +/- 10%

Applications of Air Permeable Fabric:

Cement industry: cement bulk cement trucks,boats; Mining: alumina,lime,fly ash,phosphate; Chemical industry: soda; Power: fly ash,desulfurization; Food industry: flour.
